Ultra-high Strength Steel-23Co14Ni1Cr3MoE
-
-
Ultra-high Strength Steel
Grade：
AMS 6532、Aermet 100Standards and Technical Conditions：
GJB 9450-2018，GKHB-JS-201800
-
Product Characteristics
-
A-100 corresponds to domestic grade 23Co14Ni12Cr3MoE, a new high alloy Co-Ni secondary hardened ultra-high-strength steel, using C, Cr, Mo as strengthening elements, with high fracture toughness (KIC≥115 MPa√m) and high tensile strength (Rm≥1930 MPa), and excellent fatigue resistance and crack propagation resistance.
-
Industrial Application
-
A-100 is a leader among ultra-high-strength materials. Due to its excellent performance, it can be used for aircraft undercarriage and other aircraft fuselage structural components. At the same time, it is widely used in aerospace, aviation and weapon parts, greatly improving the reliability, safety and service life of products and equipment.
-
Company Product Applications
-
Bars produced by the Company are applied to weapon components.
Common Delivery Condition

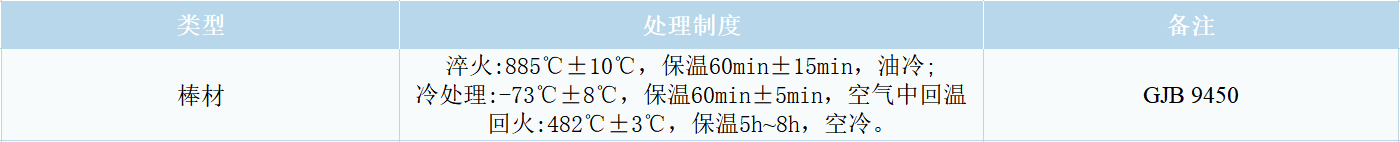

Standard Heat Treatment Procedure
Main Specifications
Delivery Condition
Bars are normalized + high-temperature tempered, and supplied after grinding and turning

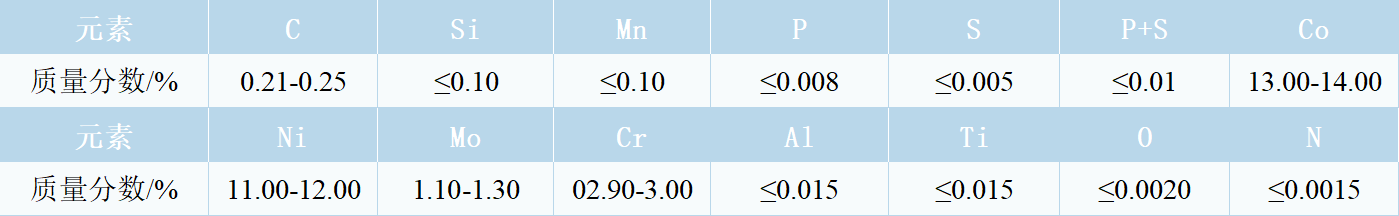

Chemical Composition

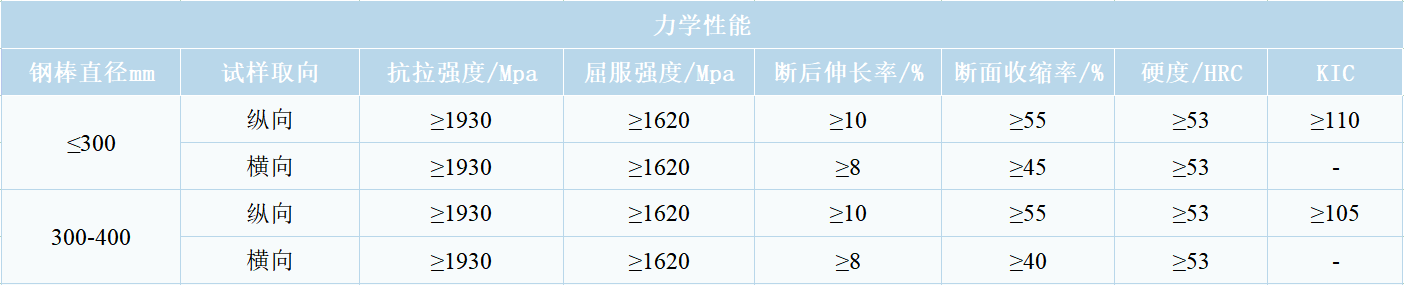

Mechanical Properties
