Superalloy-GH4099
-
-
Superalloy
Grade：
GH4099（GH99、ЭИ693）Standards and Technical Conditions：
GB/T 14992 GJB1952A HB5332 HB5333 HB/Z140 QJ/DT0160018 QJ/DT0160020 QJ/DT0160011
-
Product Characteristics
-
GH4099 is a Ni-Cr based precipitation hardened wrought superalloy, with the long-term service temperature below 900℃, and short-term operating temperature up to 1000℃. The alloy is strengthened by adding W, Mo, Cr, and Co for solid-solution strengthening, adding Al and Ti to form γ' precipitation strengthening phase, and adding trace B, Ce and Mg for grain boundary strengthening, offering the obvious comprehensive strengthening. The alloy has excellent room and high temperature strength, outstanding oxidation resistance, and good thermal processing and welding performance.
-
Industrial Application
-

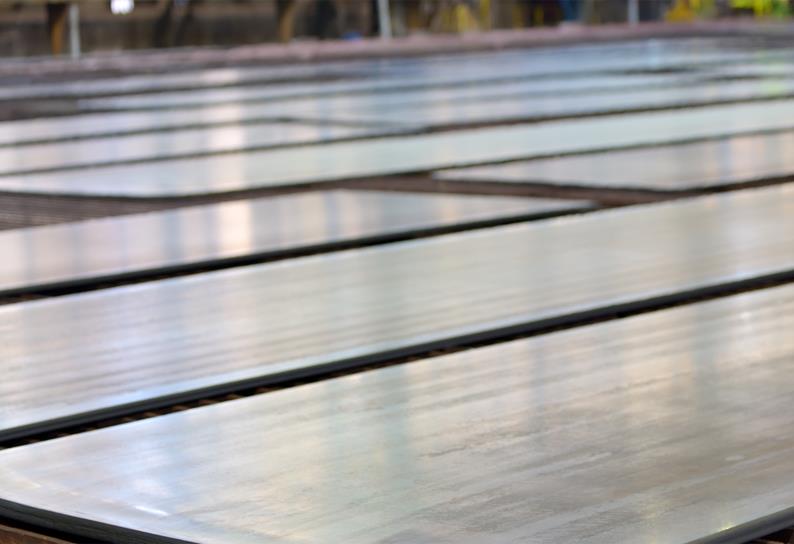

Main products include hot-rolled bars, hot-rolled medium-thick plates, forged bars and rings.
-
Company Product Applications
-
The Company produces hot-rolled bars mainly for aerospace projects, hot-rolled plates for missile engines, and forged bars for ramjet engines.
Common Delivery Condition

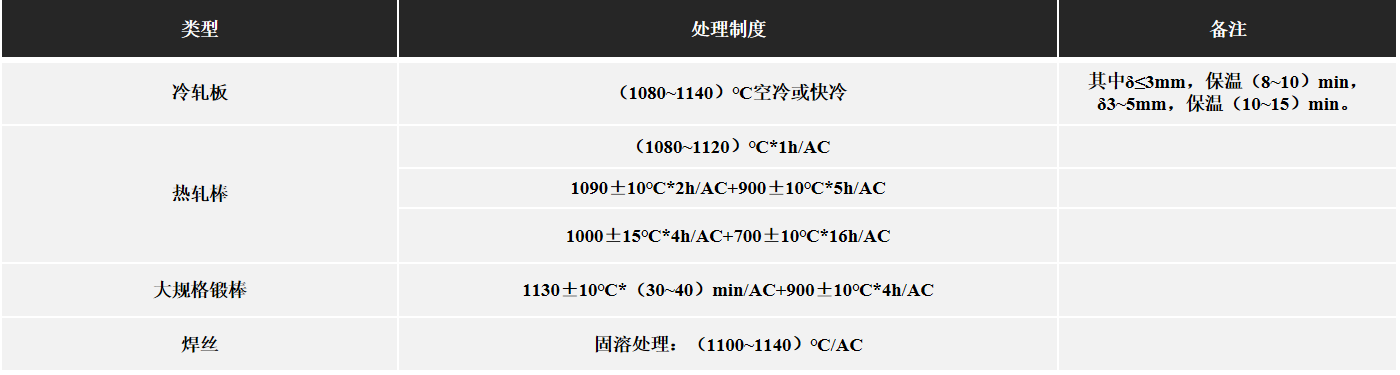

Standard Heat Treatment Procedure
Excerpted from HB/Z140, QJ/DT0160018, QJ/DT0160020, QJ/DT0160011; heat treatment procedures for each variety are:

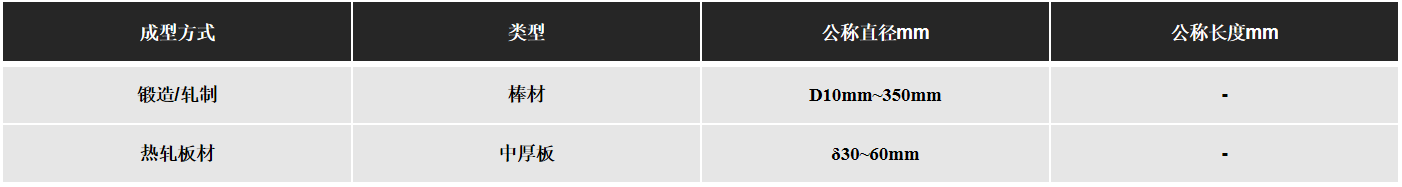

Main Specifications
Delivery Condition
Bars did not undergo the heat treatment, supplied after grinding or turning;
Strips are supplied after pickling.

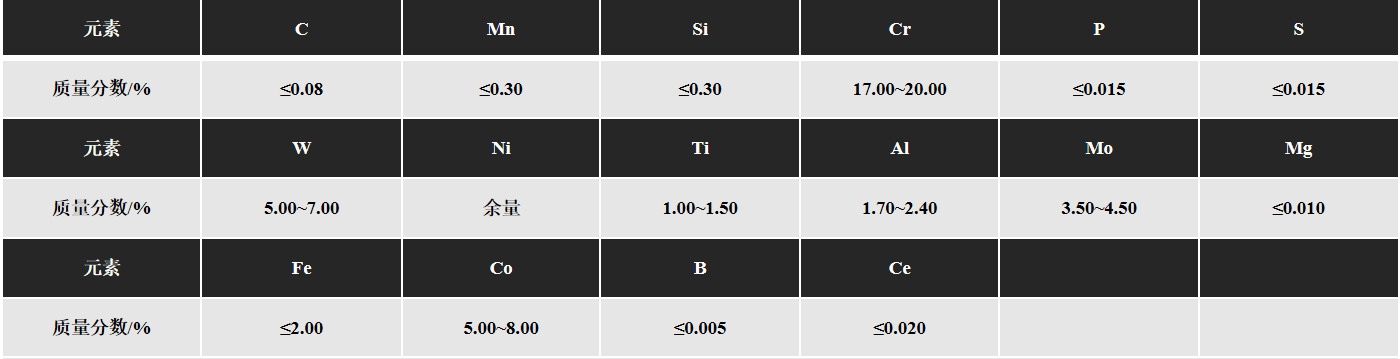

Chemical Composition
Excerpted from GB/T 14992.

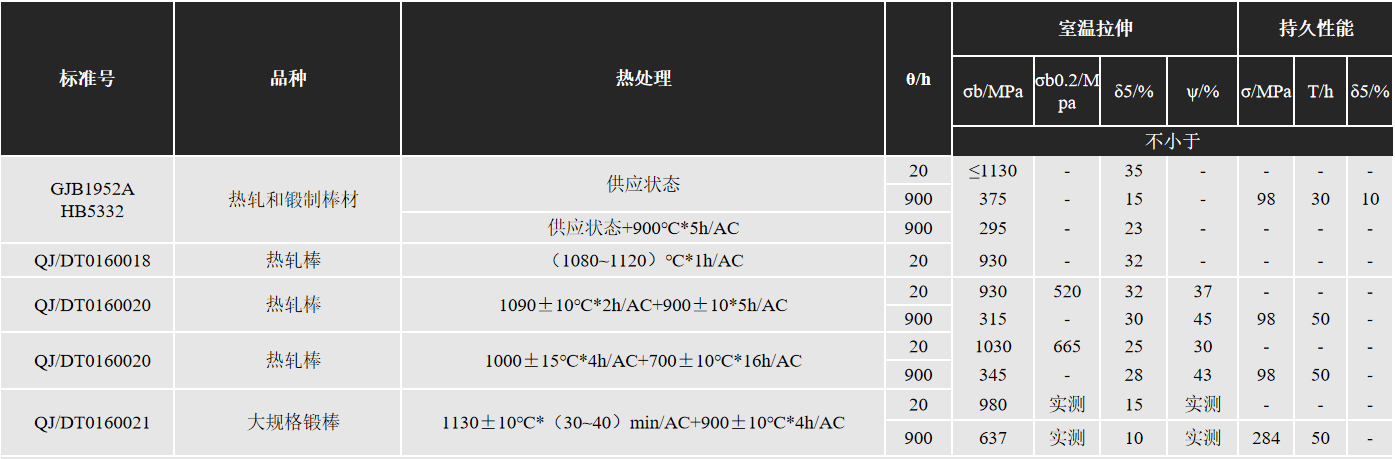

Mechanical Properties
Tensile Properties
