Grade：

GH1035

Standards and Technical Conditions：

GB/T 14992 Classification and Designation for Superalloys and High Temperature Intermetallic Materials; GJB 1952A Specification for Cold-rolled Superalloy Sheets for Aviation; GJB2612 Specification for Cold Drawn Wires of Heat-resisting Superalloy for Welding; GJB3317A Specification for Hot-rolled Superalloy Plates for Aviation; HB/Z140 Heat Treatment of Superalloy for Aviation

Product Characteristics

GH1035 is a Fe-Ni-Cr based solid-solution strengthened wrought superalloy, strengthened by elements such as chromium and tungsten, with a service temperature below 900℃. The alloy has high thermal strength, comparable to GH3039 nickel-based alloy. The alloy has good thermal processing plasticity, welding and cold forming process performance. Main products include plates, bars, wires and rings.

Industrial Application

The alloy has been used to manufacture parts, such as turbine engine combustion chambers, turbine outer rings and exhaust devices for long-term operation below 900℃. It is suitable for making flame tubes, combustion chamber jackets, afterburner combustion chambers, guide ring, and other ring parts of various aero engines. In the medium temperature range, the alloy's fatigue performance is lower than nickel based alloy of similar use, and its hydrochloric acid corrosion resistance is slightly worse than nickel based alloy of similar use.

Company Product Applications

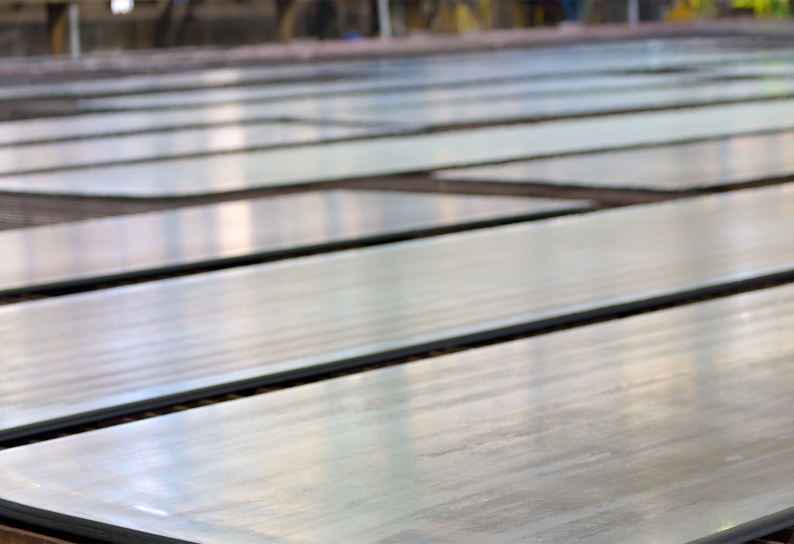

Our company mainly produces GH1035 of various specifications in forged bars and rolled rounds for aviation, aerospace and other fields.

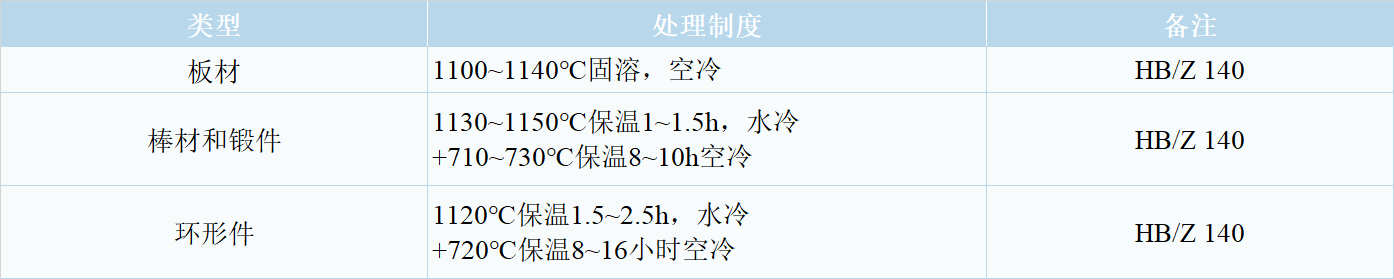

Common Delivery Condition

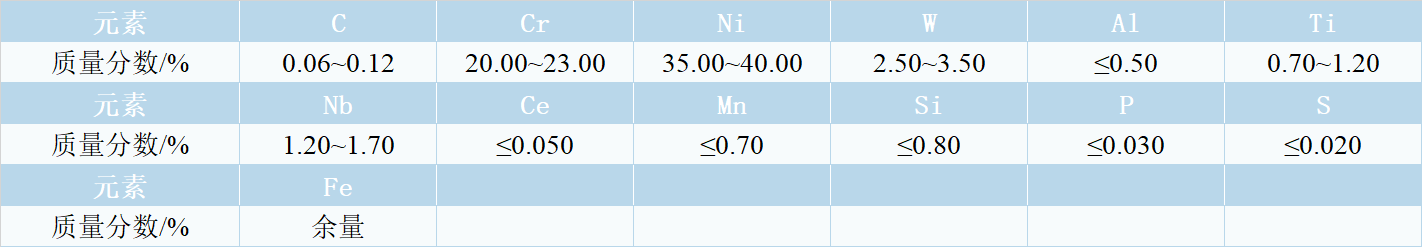

Chemical Composition

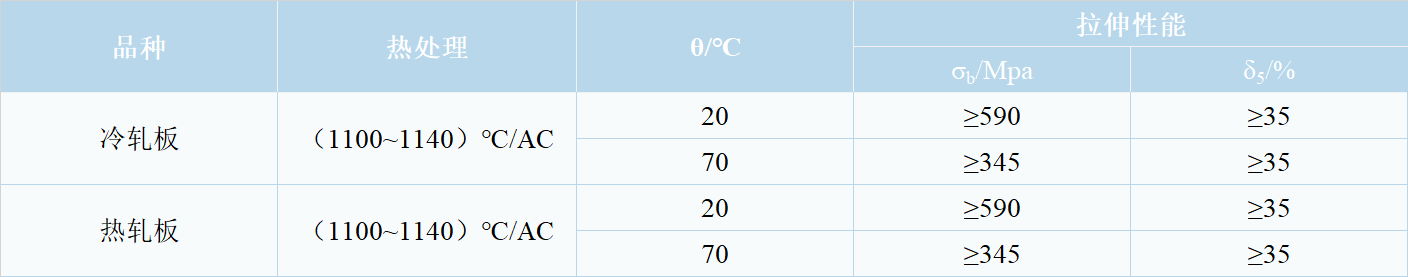

Mechanical Properties

Industrial Application
