Superalloy-GH3044
-
-
Superalloy
Grade：
GH3044（GH44、ЭИ868、XH60BТ、BЖ98）Standards and Technical Conditions：
GB/T 14992、GJB 1952A、GJB 3020A、GJB 3165A、GJB 3317A、GJB 5301A、HB/Z140
-
Product Characteristics
-
GH3044 is a Ni-Cr based solid-solution strengthened wrought superalloy, with a service temperature below 900℃. The alloy contains a large amount of tungsten and small amounts of aluminum and titanium. The alloy has high plasticity, medium thermal strength, excellent oxidation resistance, and good stamping and welding process performance. It is suitable for manufacturing long-term components of aero engines operating below 900℃, including components of main combustion chambers and afterburner combustion chambers, as well as thermal shields and guide blades. Main products include plates, strips, wires, bars and rings.
-
Industrial Application
-
The alloy has been used to manufacture aero engine combustion chambers and afterburner combustion chambers with stamped and welded structural components, as well as mounting edges, ducts and guide blades, showing reliable performance and good service.
The alloy can be welded using fluorine arc spot welding, seam welding and brazing, and can be combined for welding with alloy, such as 1Cr18Ni9Ti, GH1140, GH3030 and GH3039. Parts operating at high temperature can be effectively protected with W 2 enamel coating.
-
Company Product Applications
-
The Company produces bars applied to aero engines, guide blades and other components.
Common Delivery Condition
Standard Heat Treatment Procedure
Excerpted from HB/Z 140, GJB 1952A, GJB 3020A, GJB 3165A, GJB 3317A, GJB 3318A and GJB 5301A.

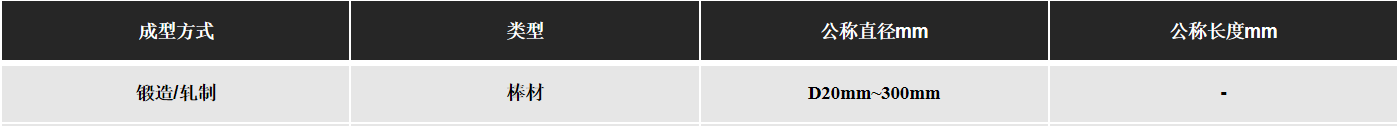

Main Specifications
Delivery Condition
Bars did not undergo the heat treatment, supplied after polishing and turning
Chemical Composition
Excerpted from GB/T 14992, differences in impurity element analysis are excerpted from GJB 3317A and GJB 3318A

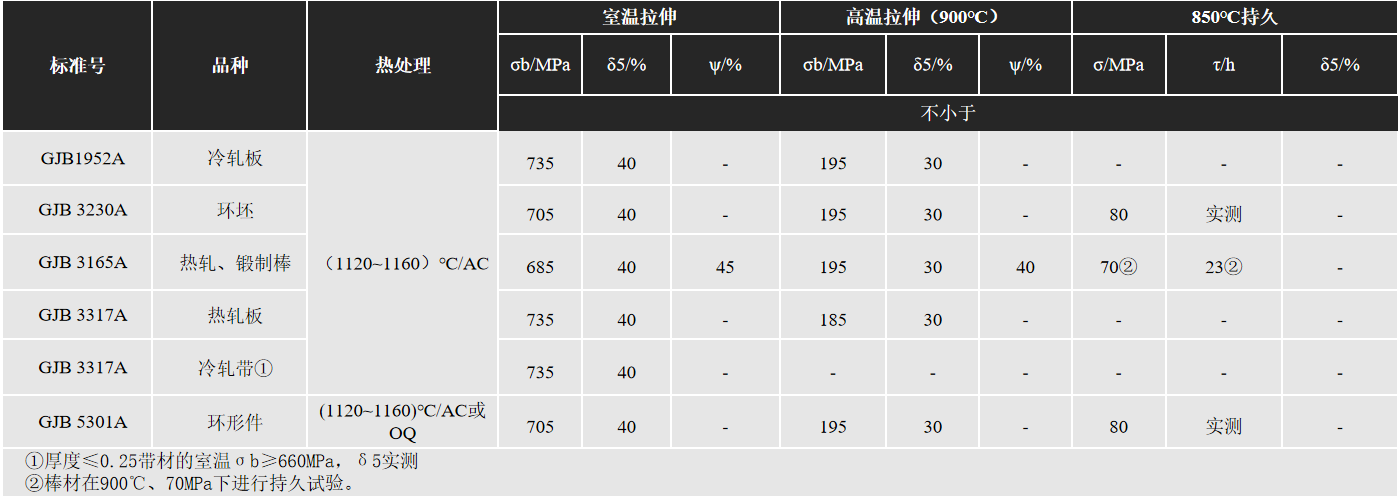

Mechanical Properties
Tensile Properties
