Ultra-high Strength Steel-45CrNiMo1VA
-
-
Ultra-high Strength Steel
Grade：
D6ACStandards and Technical Conditions：
GJB 5063-2001
-
Product Characteristics
-
In the early 1960s, the United States began developing D6AC, which is improved from AISI 4340 steel.
-
Industrial Application
-
It is widely used in manufacturing tactical and strategic missile engine casings and aircraft structural components. By the mid-1970s, D6AC gradually replaced other alloy structural steels, becoming a specialized steel for manufacturing solid rocket motor casings. US new ground-to-air missile "Patriot", small missile "Red Eye", medium and large missiles "Minuteman", "Pershing", "Polaris", "Hercules", etc., and the φ3.7m booster casing of the US Space Shuttle are also made of D6AC steel. D6AC has also been used for F-111 aircraft undercarriage and wing shafts.
-
Company Product Applications
-
Steel bars produced by the Company are used for aerospace materials.
Common Delivery Condition

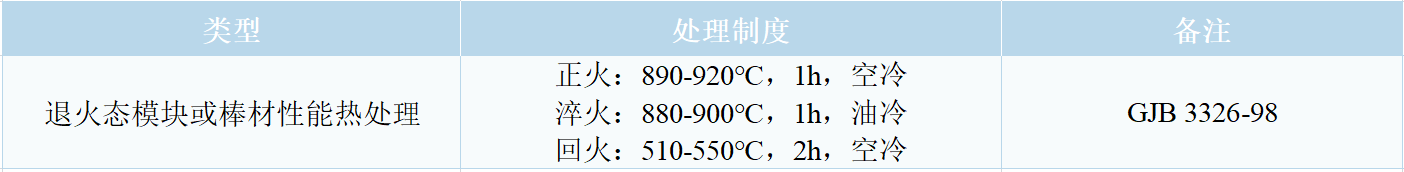

Standard Heat Treatment Procedure

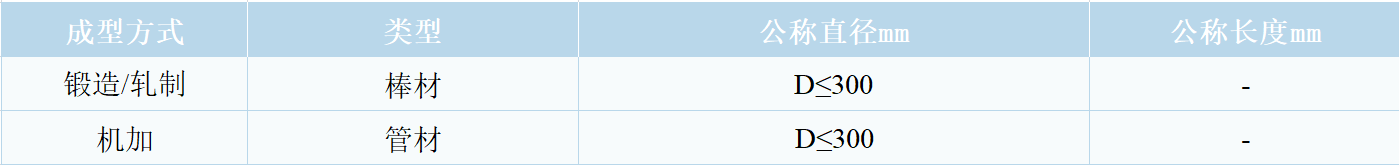

Main Specifications
Delivery Condition
Annealing or high-temperature tempering

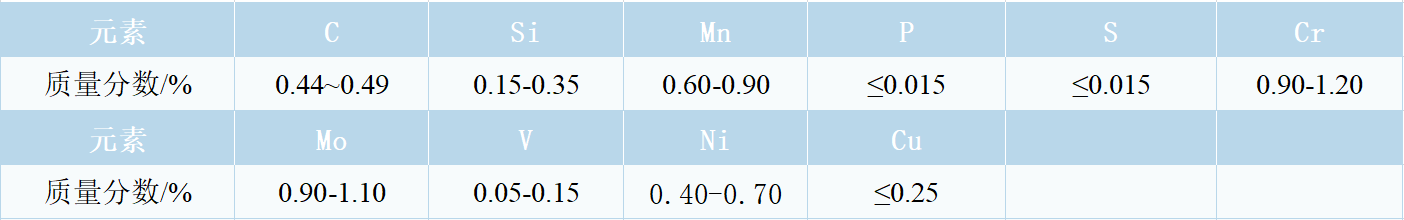

Chemical Composition

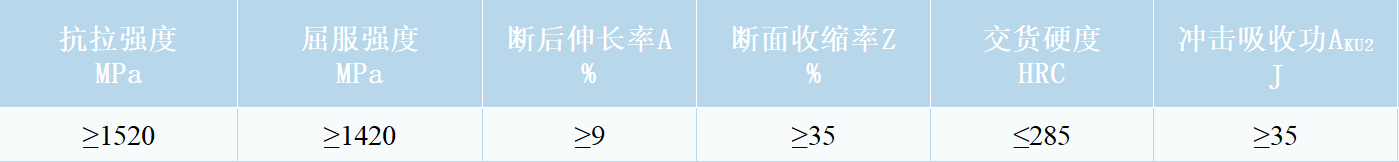

Mechanical Properties
Physical Properties
