Alloy Structural Steel-60Si2CrVA
-
-
Alloy Structural Steel
Grade：
60Si2CrVAStandards and Technical Conditions：
GB/T 1222-2007
-
Product Characteristics
-
60Si2CrVA has high tensile strength and yield strength, relatively high hardenability, and good heat treatment process performance, but has temper brittleness. Due to the high strength, internal stress relief treatment shall be performed promptly after coiling the springs.
-
Industrial Application
-
60Si2CrVA is mainly used for large springs working below 250℃ and bearing high loads, such as: gas turbine gland sealing springs, regulating springs, condenser support springs, high-pressure water pump disk springs, and buffer reset springs of mining crushers. It is also used for extremely important springs, such as cartridge-extractor springs of conventional weapons.
-
Company Product Applications
-
round barss produced by the Company are mainly applied to friction-spring use.
Common Delivery Condition

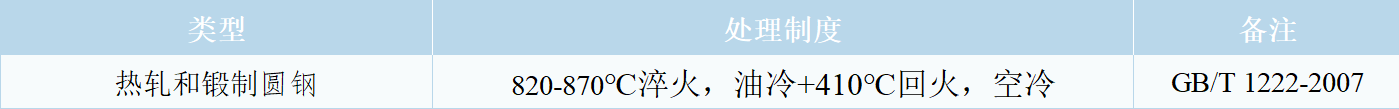

Standard Heat Treatment Procedure

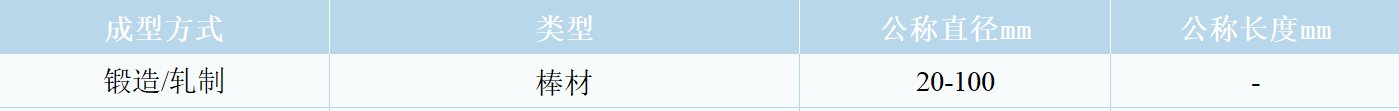

Main Specifications
Delivery Condition
Bars are annealed and supplied after grinding or turning

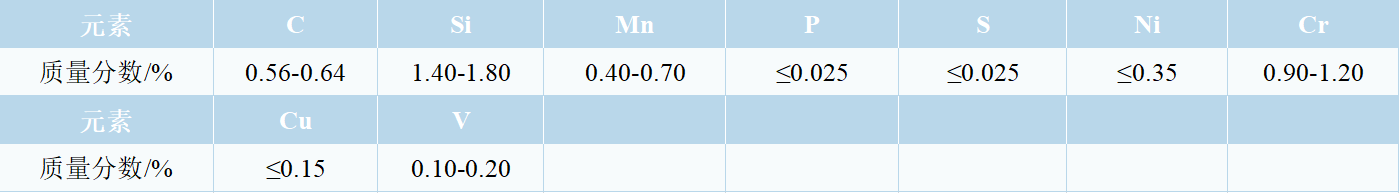

Chemical Composition

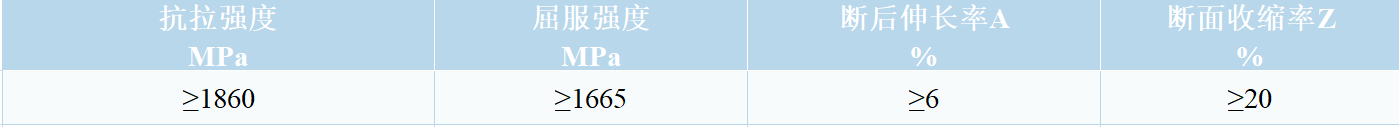

Mechanical Properties
