Alloy Structural Steel-30CrNi3
-
-
Alloy Structural Steel
Grade：
30CrNi3、31NiCr14、SNC836Standards and Technical Conditions：
GB/T 3077、GJB 1220A
-
Product Characteristics
-
30CrNi3 features excellent hardenability, relatively high strength and toughness. After quenching and low-temperature tempering or high-temperature tempering, it has good comprehensive mechanical properties. It has good machinability but low plasticity during cold deformation, and poor weldability; and shows white-point sensitivity and a tendency to temper brittleness. Generally, it is used in the quenched and tempered condition.
-
Industrial Application
-
It is used for manufacturing the important large-size quenched and tempered components subjected to high torsional and impact loads and requiring good hardenability, and also can be used as important parts bearing large dynamic and static loads in hot forging and hot punching.
-
Company Product Applications
-
It is mainly used for shafts, connecting rods, keys, bolts, nuts, and similar ranges.
Common Delivery Condition

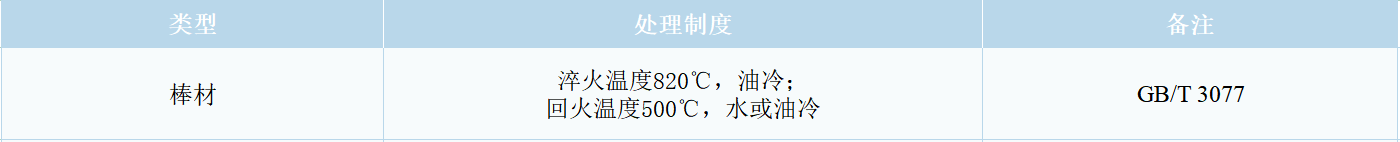

Standard Heat Treatment Procedure

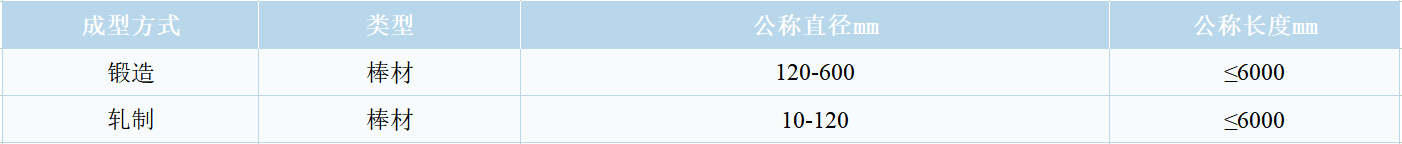

Main Specifications
Delivery Condition
Bars are annealed or tempered at high temperature, and delivered after grinding or turning.

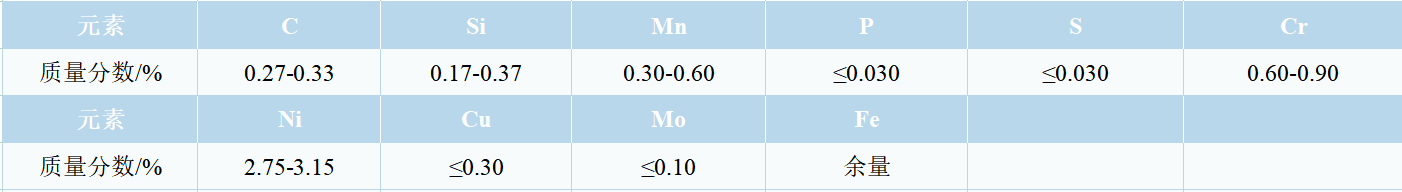

Chemical Composition

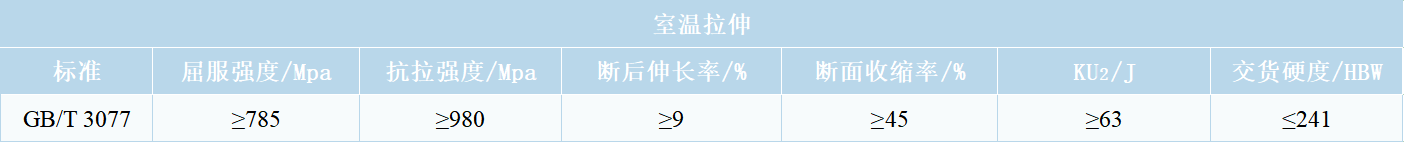

Mechanical Properties
