Alloy Structural Steel-35CrMnSiA
-
-
Alloy Structural Steel
Grade：
35CrMnSiAStandards and Technical Conditions：
GB/T 3077、GJB 2720、GJB 1220A
-
Product Characteristics
-
35CrMnSiA steel is a low alloy ultra-high-strength steel. After heat treatment, it has good comprehensive mechanical properties, high strength, sufficient toughness, hardenability, weldability and good forming machinability, but poor corrosion resistance and oxidation resistance. The service temperature is generally below 200℃. It is suitable for use after isothermal quenching or low-temperature tempering.
-
Industrial Application
-
35CrMnSiA is an important engineering material widely used in the modern manufacturing field. It is used to manufacture high-strength, medium-speed, heavy-load parts and high-strength components, such as aircraft undercarriages, gears, shafts, clutches, sprockets, grinding wheel shafts, bushings, bolts, nuts, etc. In addition, it can be applied in manufacturing wear-resistant parts with low working temperature and large load variation. High-pressure blower blades, valve plates, non-corrosive pipelines and other welded components.
-
Company Product Applications
-
Bars produced by the Company are applied to light-weapon structural parts and bases.
Common Delivery Condition

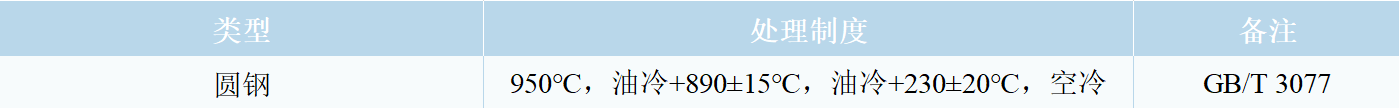

Standard Heat Treatment Procedure
|
|

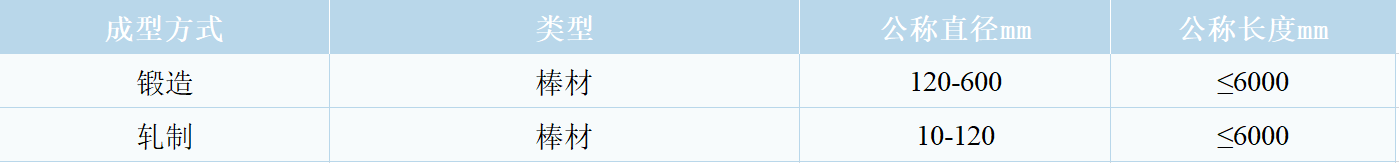

Main Specifications
Delivery Condition
Bars are annealed, quenched and tempered, and supplied after grinding or turning

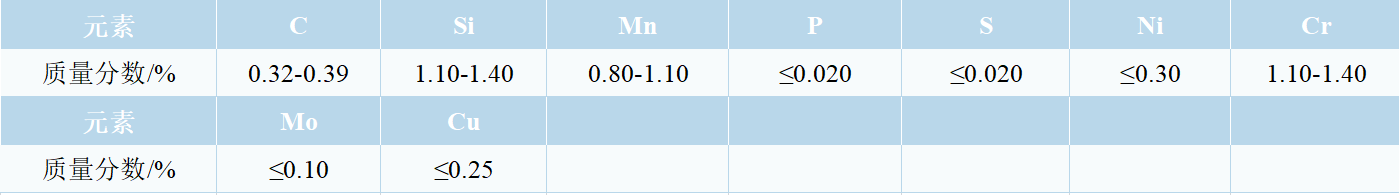

Chemical Composition

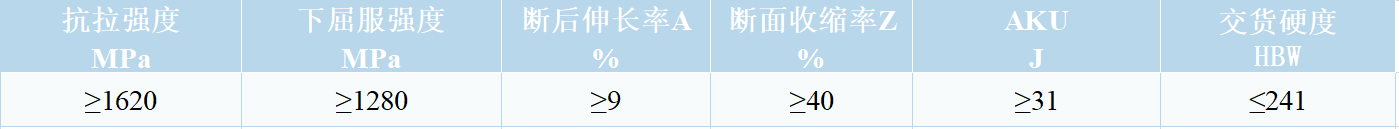

Mechanical Properties
