Plastic mold steel-4Cr13V
-
-
Plastic mold steel
Grade：
LH136、S136、LM136ESRStandards and Technical Conditions：
GB/T 1299、ASTM E112
-
Product Characteristics
-
It is commonly used to manufacture cutting tools, molds and mechanical parts, especially in applications requiring good corrosion resistance and wear resistance. Due to the presence of vanadium, the wear resistance and toughness of this steel are enhanced, enabling excellent performance in cutting tools and high-strength environments.
-
Industrial Application
-
Because of its excellent hardness, wear resistance and good corrosion resistance, it is suitable for manufacturing the plastic molds and transparent plastic product molds under corrosive medium conditions.
-
Company Product Applications
-
Bars and blocks produced by the Company are applied in plastic molds.
Common Delivery Condition

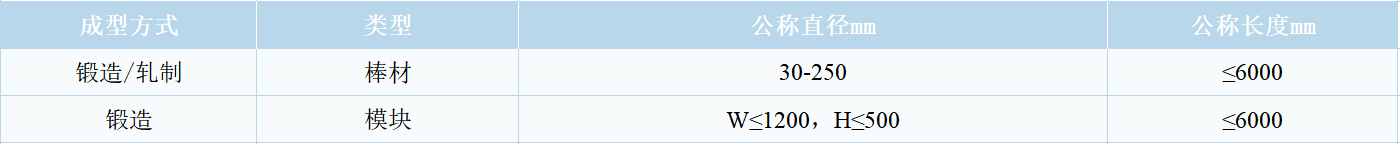

Main Specifications
Delivery Condition
Bars are not ultrafined, and supplied in black surface or after turning; blocks are ultrafined, and supplied in black surface or after milling.

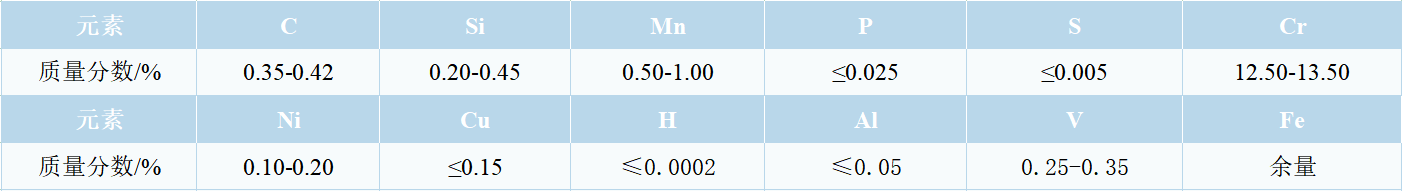

Chemical Composition
Mechanical Properties

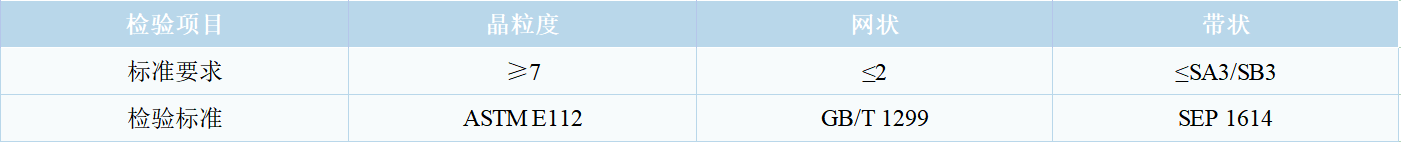

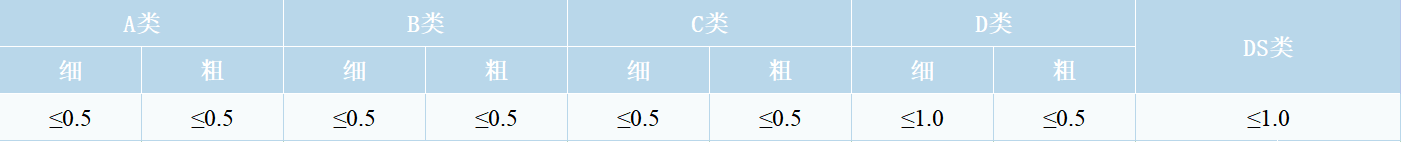

Inclusions
Macrostructure
