Martensitic Stainless Steel-1Cr11Ni2W2MoV
-
-
Martensitic Stainless Steel
Grade：
1Cr11Ni2W2MoV、13Cr11Ni2W2MoV、AK1TDStandards and Technical Conditions：
GJB2294-95、GJB2294A-2014、GJB 5040-2001、BHJ501-2011、AK1TD 0500-124 R1.00
-
Product Characteristics
-
1Cr11Ni2W2MoV steel is a martensitic heat-resistant stainless steel obtained by adding appropriate amounts of W, Mo, V, etc. to low-carbon Cr12 steel, thereby giving it martensitic transformation hardening capability. This steel grade possesses the good overall mechanical properties and is used to manufacture important components operating below 600℃, such as engine blades, disks, shafts, etc.
-
Industrial Application
-
Main products include round bars, flat bars and forgings. It is used for important components operating below 600℃, such as engine blades, disks, shafts, etc.
-
Company Product Applications
-
The round bars and flat bars produced by the Company are mainly used for gas turbine blades, and the forgings are used as gas turbine power turbine shafts and locating parts.
Common Delivery Condition
Steel ingot：annealed condition
Bars：annealed or quenched-and-tempered，supplied after grinding or turning;

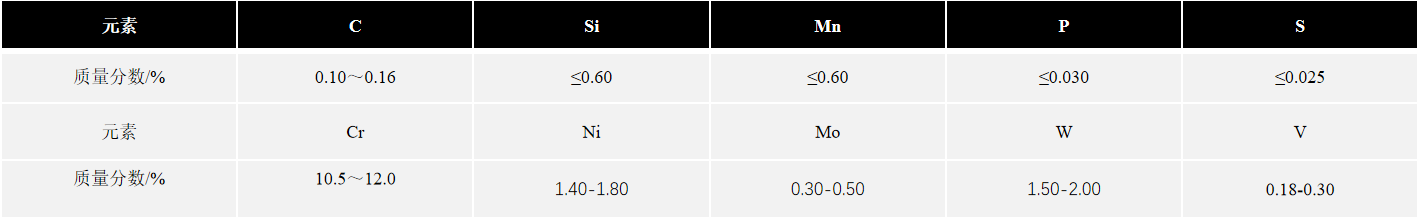

Chemical Composition
Excerpted from GJB 2294-95; impurity elements excerpted from BHJ501-2011

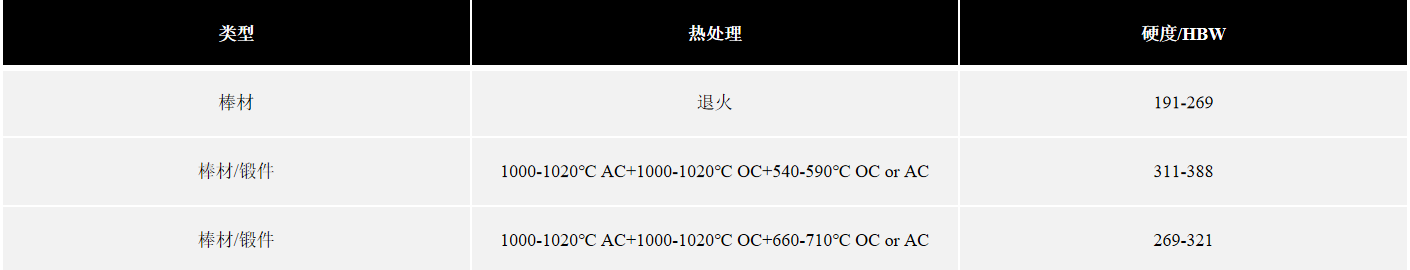

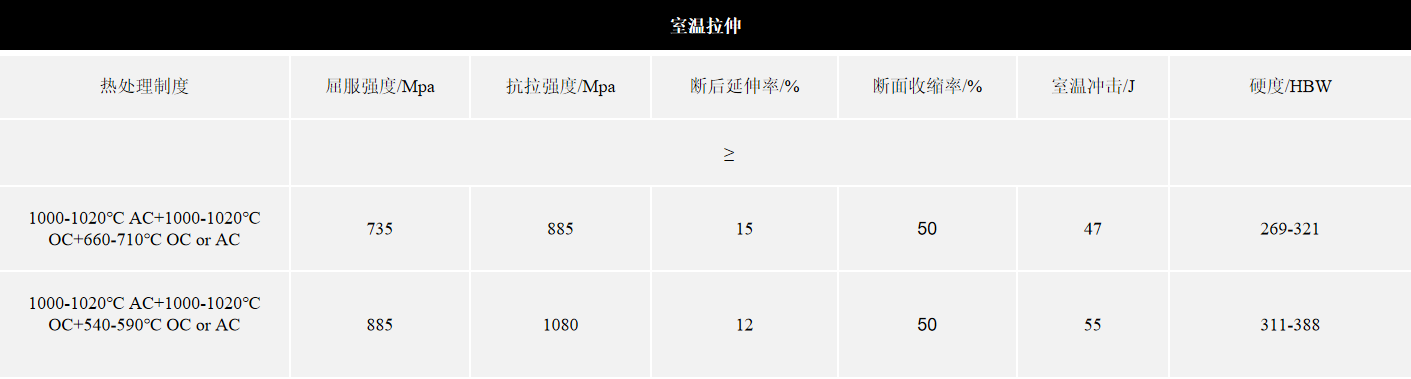

Mechanical Properties
Excerpted from GJB 2294-95

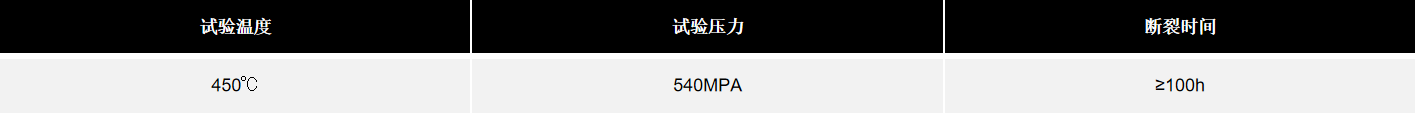

BHJ501-2011 durability is required
