Superalloy-GH2901
-
-
Superalloy
Grade：
GH2901（GH901）、Inconel 901Standards and Technical Conditions：
B/HJ4825(R2) DZ2.11.140-2022 GH901(GH2901)
-
Product Characteristics
-
GH901 is a Fe-Ni-Cr based precipitation hardened wrought superalloy. The alloy has high yield strength and endurance strength below 650℃, good oxidation resistance below 760℃, and long-term microstructure stability. Main products include: turbine disks, compressor disks, shaft diameters, static structural components, turbine outer rings and fasteners, as well as various high temperature critical components, such as engine blades and steam turbine blades.
-
Industrial Application
-
The alloy has been used to manufacture the rotating parts and fasteners for aero engines and land-based gas turbines, with long service life for alloy components.
-
Company Product Applications
-

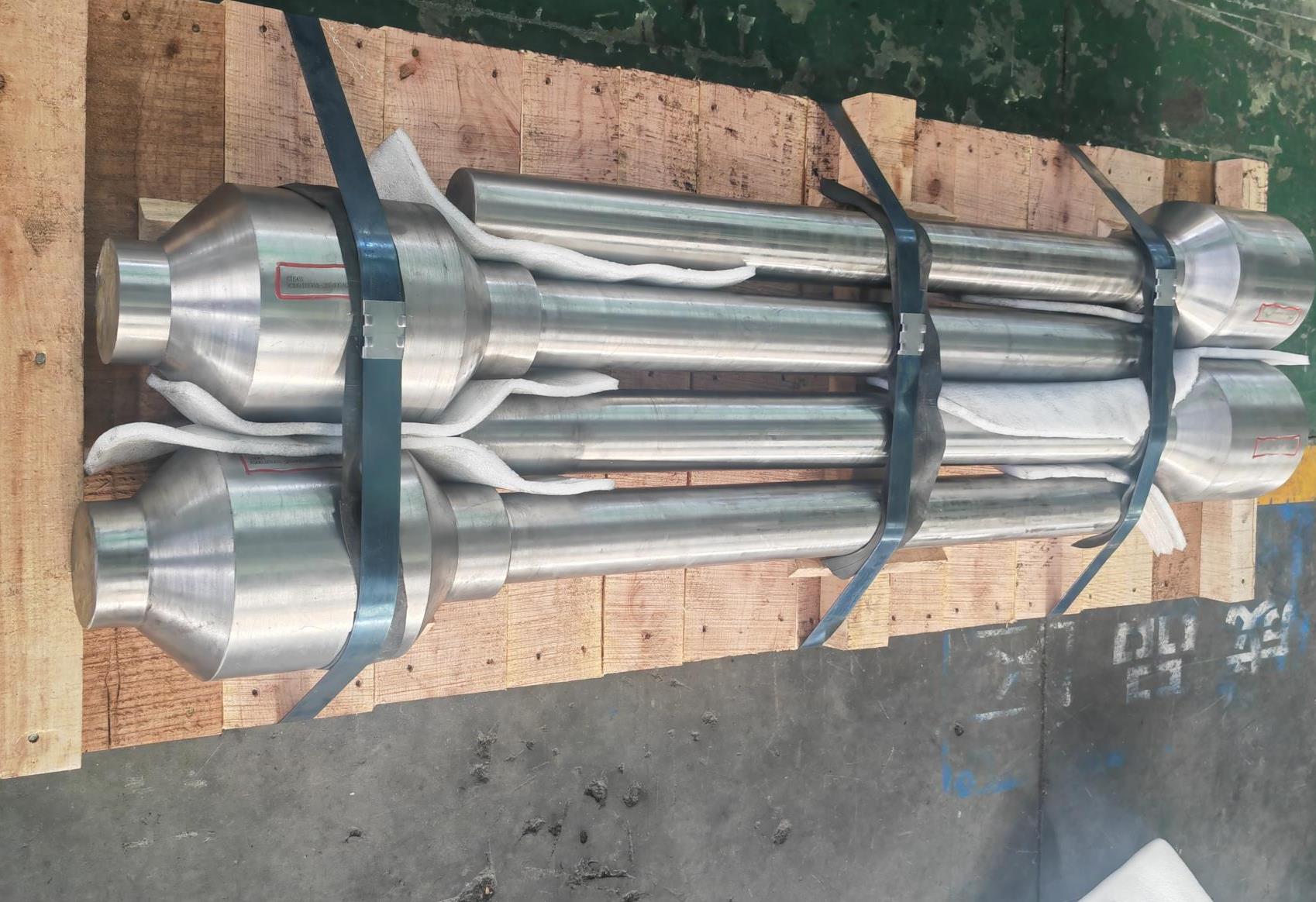

Bars produced by the Company are applied to steam turbines.
Common Delivery Condition
Standard Heat Treatment Procedure
Excerpted from GB/T 15062, GJB 1952A, GJB 2297A, GJB 3165A, GJB 3317A, GJB 3318AGJB 3317A、GJB 3318Aand HB/Z 40.

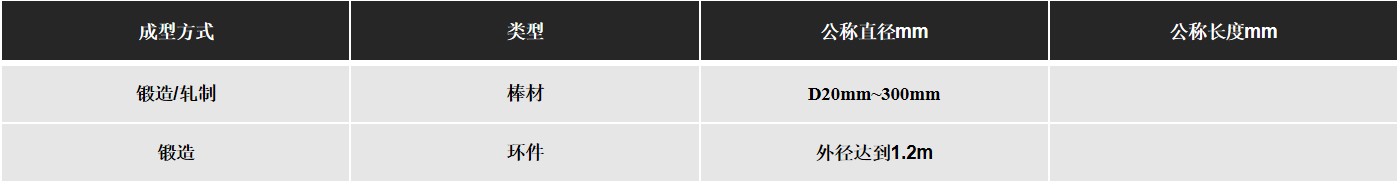

Main Specifications
Delivery condition:
Bars did not undergo the heat treatment, supplied after grinding or turning;
Rings shall undergo the heat treatment, supplied after turning.

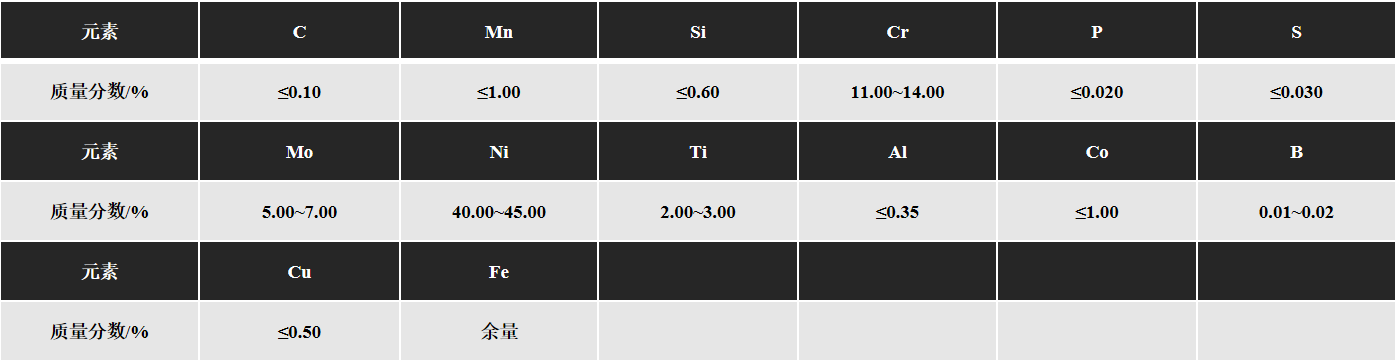

Chemical Composition
Excerpted from GB/T 14992, differences in impurity element analysis are excerpted from GJB 3317A and GJB 3318A.
Mechanical Properties
Tensile Properties

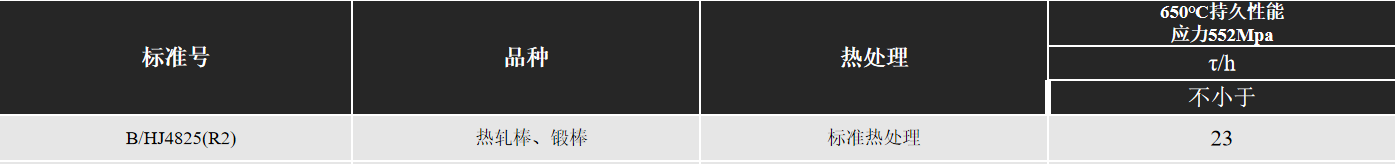

Endurance Properties
